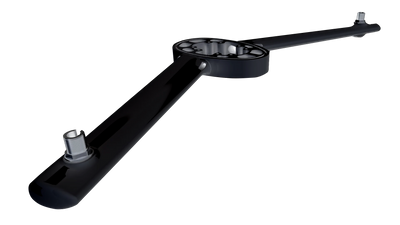

This three piece kit consists of a mid section and two spreaders. Four bolts are used to secure each spreader to the midsection. The spreaders are tapered and angled aft so that for what ever you decide to put on there it will not interfere with the radar or satdome that you have on your mount. All the wiring from your GPS unit or antenna can be routed internally through the spreaders and into the mount itself. Not only does this help with security but it also makes for a very nice and clean installation. All the parts that make up the spreader kit are bolted together with rubber gaskets in between each part to prevent any water intrusion. Each spreader kit now comes with two S.S. 1-14 threaded adapters (SP7SS).
Spreader Kit Configurations
With this spreader kit there are two ways to configure it, one for a closed dome radar configuration and one for a satdome configuration. The above image illustrates what is included out of the box, including the extension posts. When you are using a closed dome radar with a spreader kit you want to raise your GPS units above the closed dome radar to avoid interference. If you are using a satdome you don’t need to use these extension posts with GPS units. You see satdome radio waves travel up to the sky to the satellites, while the GPS waves will travel horizontally. Therefore you do not want these raised above your satellite dome.
How to Get the Right Spreader Kit For You
There are two different spreader kits available from Seaview. The only difference between the two is the size of the midsection that mounts to whichever Seaview mount you have. The smaller of the two is the SP1MOD. The SP1MOD will only fit on Seaview mounts that have a part number ending in "M1", for instance a PMA57M1. Mounts that end in "M2" for example a PMADM2M2 would use a SP2MOD spreader kit.
Spreader Fitting Guide
Use the chart below to find the part number for a specific Seaview Spreader Kit.
|Fits Seaview Modular Mounts
|Fits Seaview Modular Mounts ending in "M1". For example PMA57M1
|Fits Seaview Modular Mounts ending in "M2". For example PMADM1M2
Spreader Floodlight Kit
Seaview offers a LED flood light kit to enhance your visibility. This kit simply mounts underneath each spreader. Includes stainless steel bracket, mounting hardware and Hella 0670 Sea Hawk LED flood light (9-33v). Please note that this kit is only for 1 LED flood light.
