Seaview

PMA57M1

Modular Open Array Mounts

Fitting Guide
Modular Radar Mount Fitting Guide
Mount Style Mount Height Fits Closed Dome Radars Fits Open Array Radars Fits Satellite Domes
Aft Leaning 5" 18" - 24" Up to 6' Up to 16"
Aft Leaning 10" 18" - 24" - Up to 16"
Aft Leaning 12" 18" - 24" * Up to 4.5' * Up to 24"
Aft Leaning 16" 18" - 24" - Up to 16"
Aft Leaning 18" 18" - 24" * Up to 4.5' * Up to 24"
Aft Leaning 24" 18" - 24" - Up to 16"
Aft Leaning 36" 18" - 24" - Up to 16"
Forward Leaning 5" 18" - 24" Up to 6' Up to 16"
Forward Leaning 10" 18" - 24" - Up to 16"
Vertical 5" 18" - 24" - Up to 24"
Vertical 12" 18" - 24" - Up to 24"
Vertical 18" 18" - 24" - Up to 24"

* Only when using Seaview Modular Top Plate #ADAR1DMLTB.

  • Description

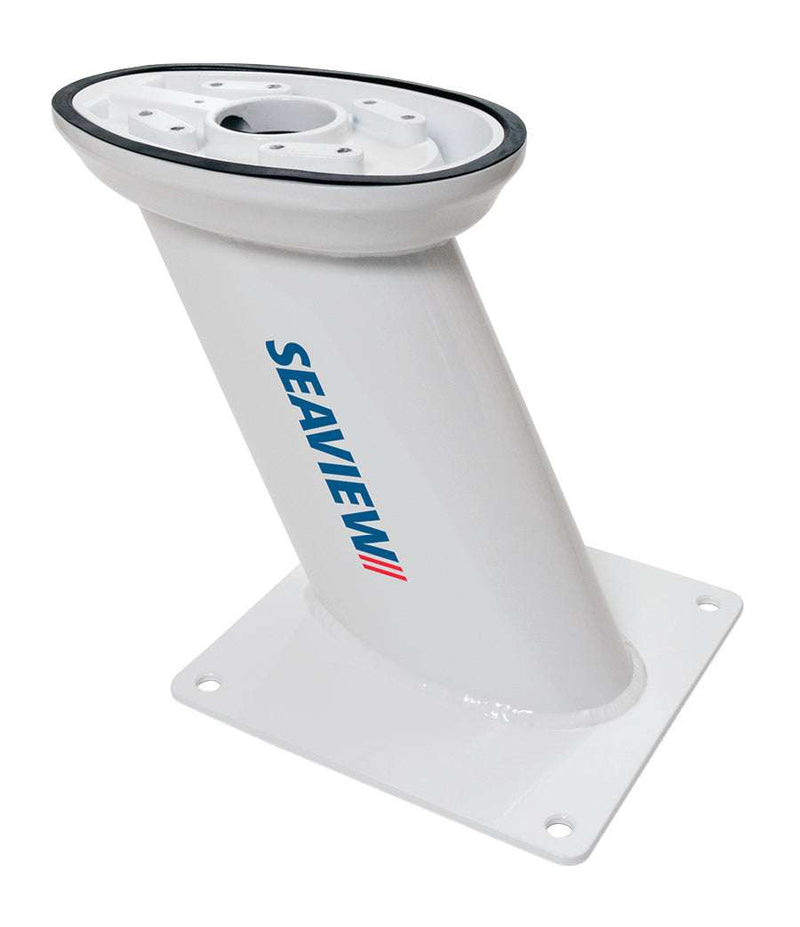

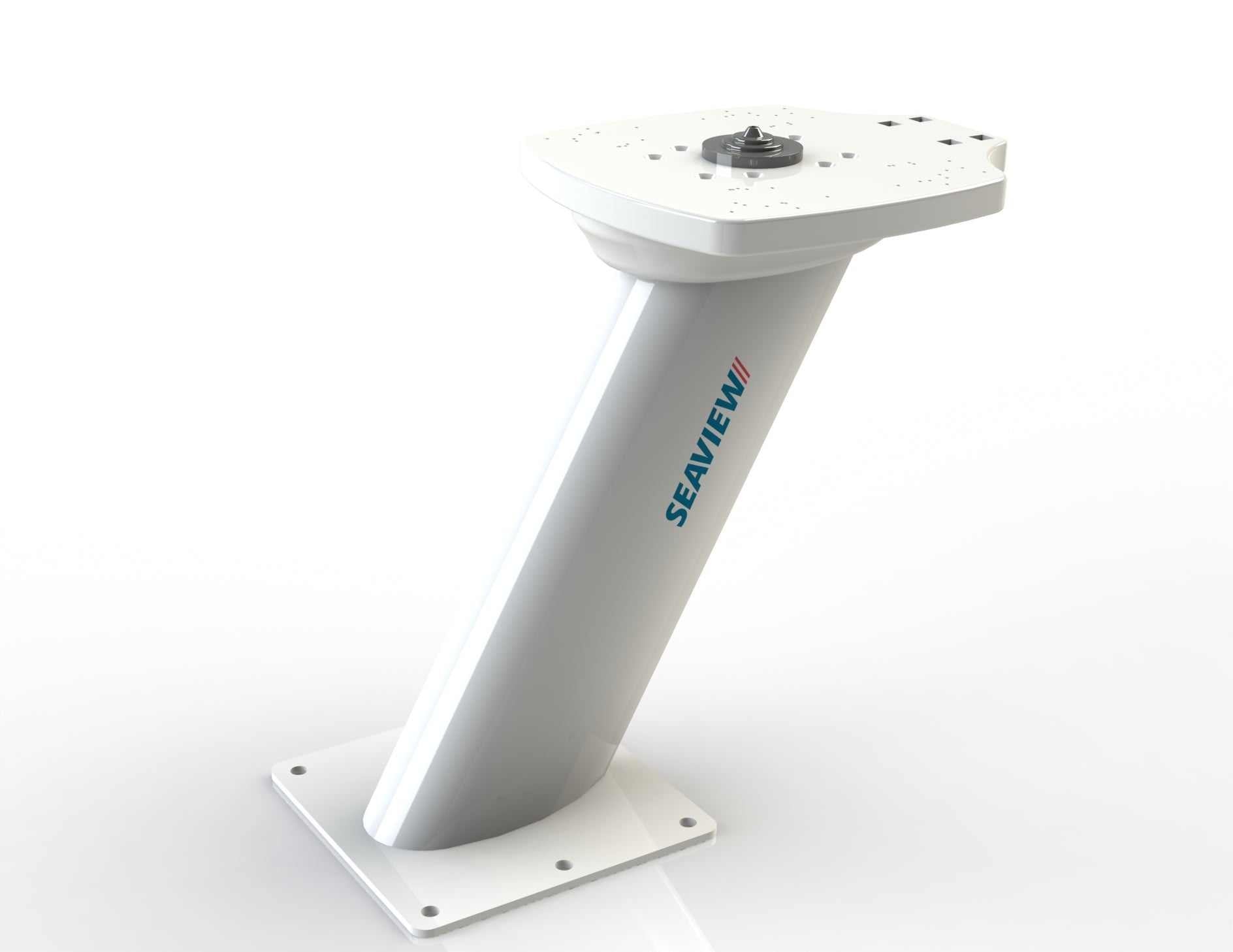

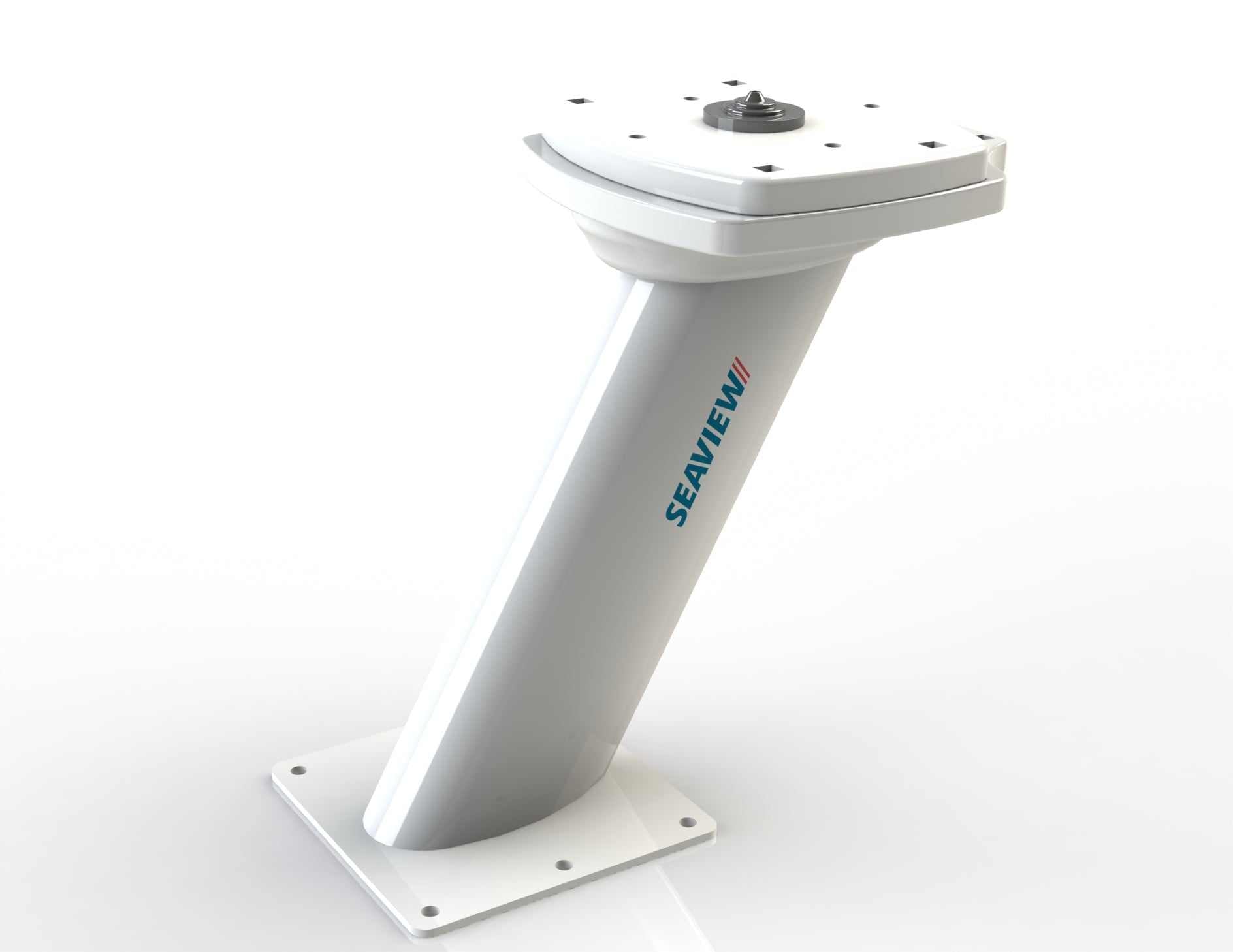

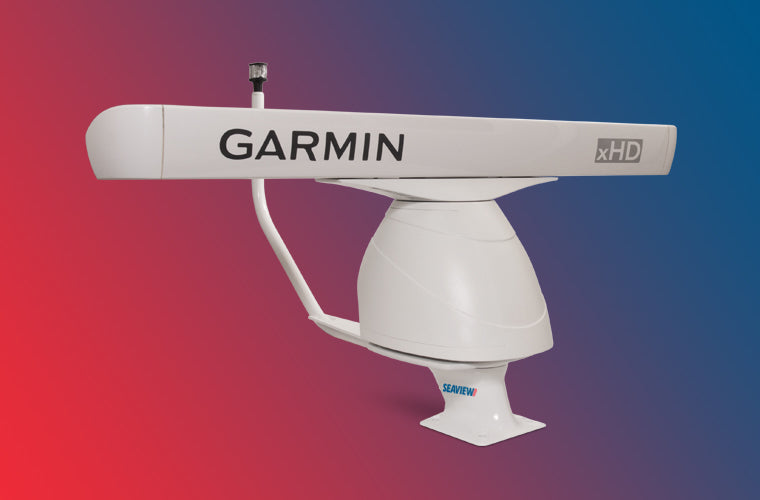

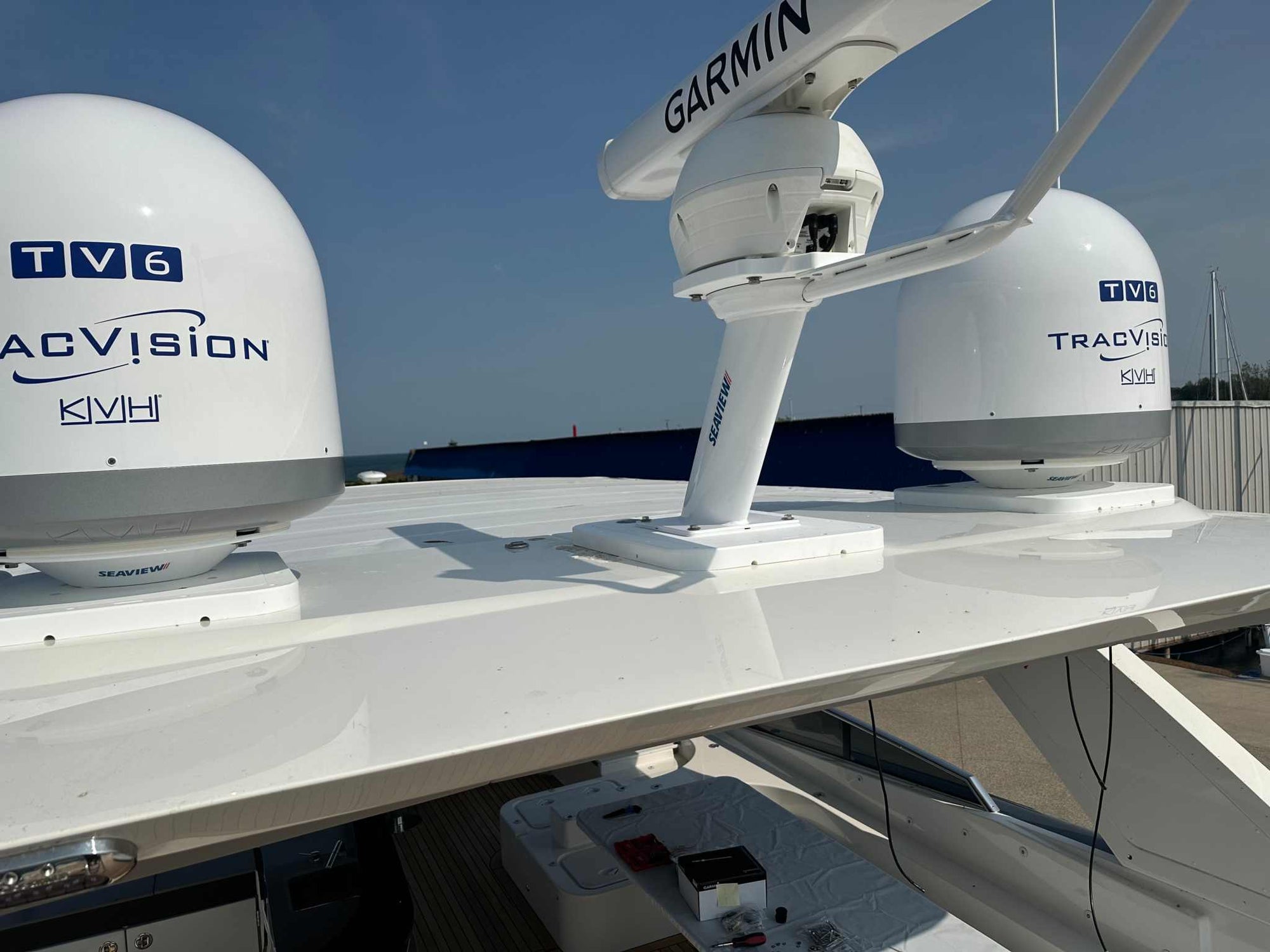

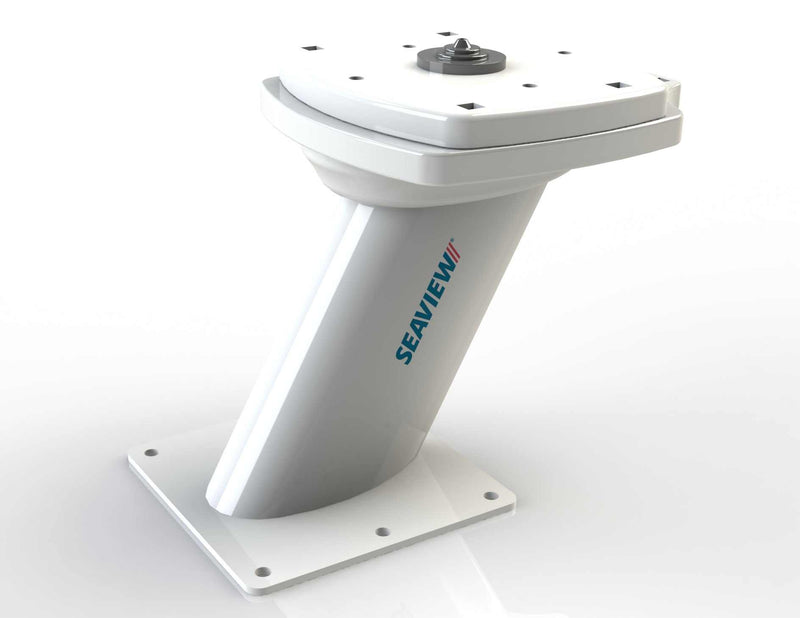

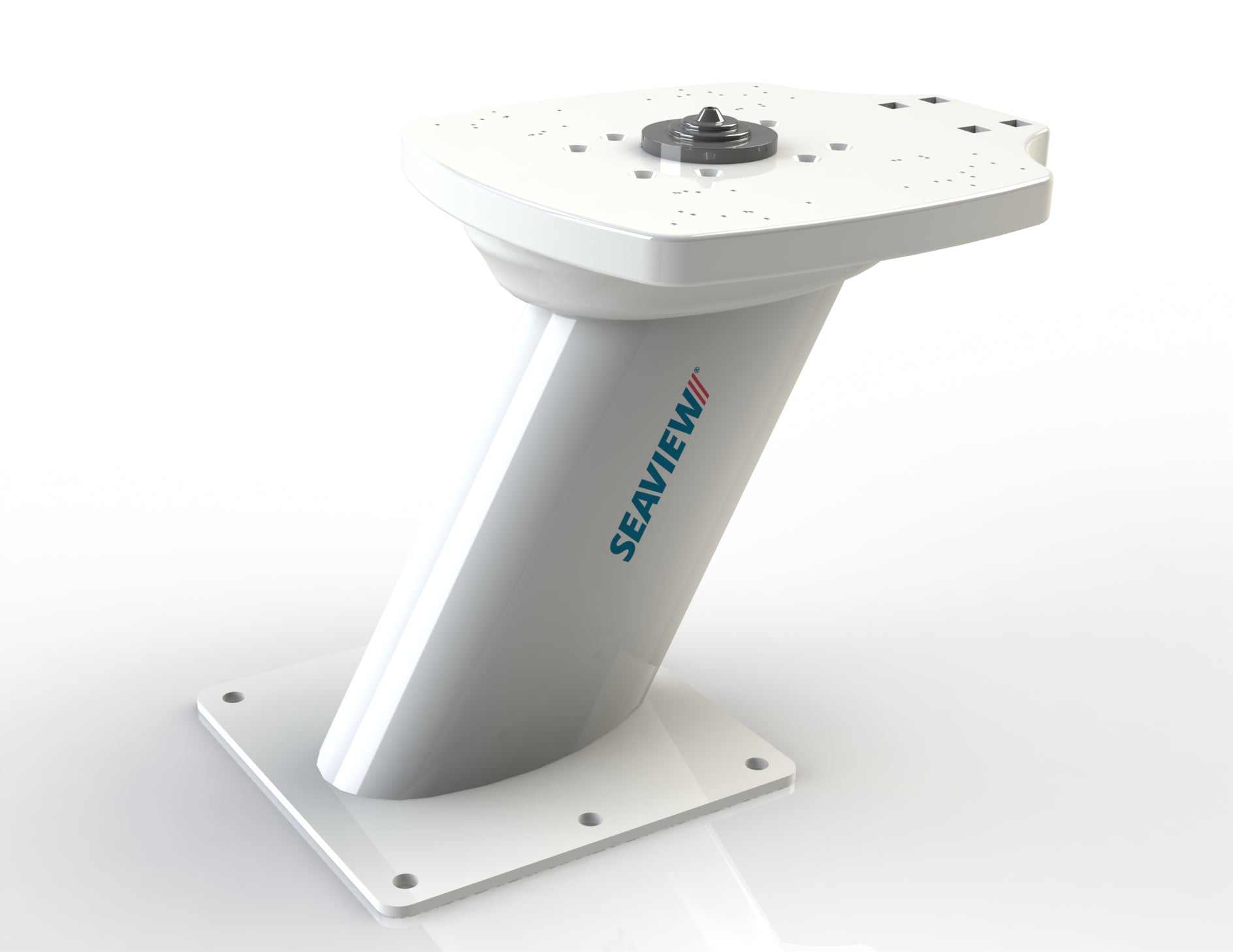

    This Seaview Modular Mount works with open array radars. The modular design allows you to add various accessories and different top plates at any point. Thus making it a cost effective choice. Oval hollow mast section allows for easy cable management.

    Both forward and aft leaning styles are 5" tall and have a 7"x7" base. Optional accessories such as a light bar or wedge are also available. A top plate is required and sold separately!

  • Seaview Part Number Dimensions
    PMA57M1 Download
    PMF57M1 Download
  • Seaview Part Number Installation Instructions
    PMA57M1 Download
    PMF57M1 Download
