Top Plate Fitting Guide

If you have selected a Seaview Modular Mount ending in "M1" (ex: PMA-57-M1) use the "For M1 Mounts" column below for the correct Top Plate. Modular Mounts Mounts ending in "M2" (ex: PMA-DM2-M2) use "For M2 Mounts" column.

 Electronics Make & Model

Part #

(For M1 Mounts)

Part #

(For M2 Mounts)

Comnav





Explorer V2/V3 ADA-F1 ADA-F1
FLIR
MD-Series, M-Series ADA-F1 ADA-F1
Furuno
15" - 18" radar domes ADA-R1 N/A
24" radar domes ADA-R1 N/A
4' - 6' open array radars ADA-R1 N/A
Open array radar 1942 ADA-R2 N/A
Garmin
GMR18(HD), GMR18x(HD) ADA-R1 N/A
GMR24(HD), GMR24x(HD) ADA-R1 N/A
4' - 6' open array radar ADA-R1 N/A
Geonav
24" radar domes ADA-R1 N/A
3.5' - 4.5' open array radars ADA-R1 N/A
Glomex
20" - 27" satdomes ADA-S1 ADA-S3
Intellian
i2 ADA-S1 ADA-S3
i3 ADA-S1 ADA-S1
i4, i4P ADA-S2 ADA-S2
i5 ADA-S2 ADA-S2
i6, i6P, S6HD, FB500 ADA-S2 ADA-S2
FB150, FB250 ADA-S4 ADA-S4
JRC
15" radar domes ADA-R1 N/A
24" radar domes ADA-R2 N/A
Koden
18" (MDC 900 Series) radar domes ADA-R1 N/A
25" (MDC 900 Series) radar domes ADA-R1 N/A
4' - 6' open array radars ADA-R1 N/A
KVH
M1DX, M1, TV1 ADA-S1 ADA-S3
M2, M3, M3DX, M3ST, V3, V3-IP, TV3 ADA-S1 ADA-S1
M5, TV5, FB250 (18") ADA-S2 ADA-S2
M7, M7SK, HD7, TV6, FB500 (26"), V7, V3-IP (24") ADA-S2 ADA-S2
FB150 (10.8"), FB250 (11") ADA-S4 ADA-S4
Lowrance
3G, 4G radar domes ADA-R1 N/A
Lorenz
12" - 24" radar domes ADA-R1 N/A
4' - 6' open array radars ADA-R1 N/A
Raymarine
18" - 24" radar domes ADA-R1 N/A
Quantum, Quantum 2 radar domes ADA-R1 N/A
4' - 6' open array radars ADA-R1 N/A
33STV ADA-S1 ADA-S3
37STV ADA-S1 ADA-S1
45STV ADA-S2 ADA-S2
60STV ADA-S2 ADA-S2
T200, T300, T400 ADA-F1 ADA-F1
Sea-Tel (Cobham)
ST14, FX150 (16.5") ADA-S2 ADA-S2
C18, FX250 (24") ADA-S2 ADA-S2
Simrad
3G, 4G radar domes ADA-R1 N/A
DX64S ADA-R2 N/A
TX06S ADA-R1 N/A
TX10S ADA-R1 N/A
4' - 6' Halo open array radar ADA-R1 + ADA-HALO3 N/A
4' - 6' RB series open array radar ADA-R1 N/A
Sitex
18" (T760/T921)  radar domes ADA-R1 N/A
24" (T761) radar domes ADA-R1 N/A
25" radar domes ADA-R1 N/A
4' - 6' open array radars ADA-R1 N/A
Siewa / Tech Marine
12" - 24" radar domes ADA-R1 N/A
4 '- 6' open array radars ADA-R1 N/A
Thrane & Thrane
FB150, FB250, Fleet 33, 33+ ADA-S4 ADA-S4
Sailor FB500, Fleet 55+ ADA-S1 ADA-S3
VDO
Ocean Line 132 ADA-S1 ADA-S3
Ocean Line 337 ADA-S1 ADA-S1
Ocean Line 345 ADA-S2 ADA-S2
Ocean Line 360, 445, 460 ADA-S2 ADA-S2
  • Description

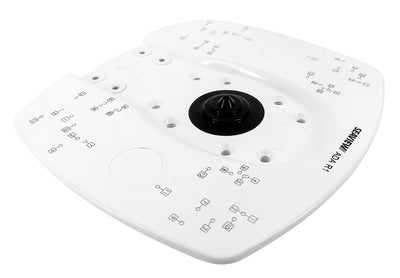

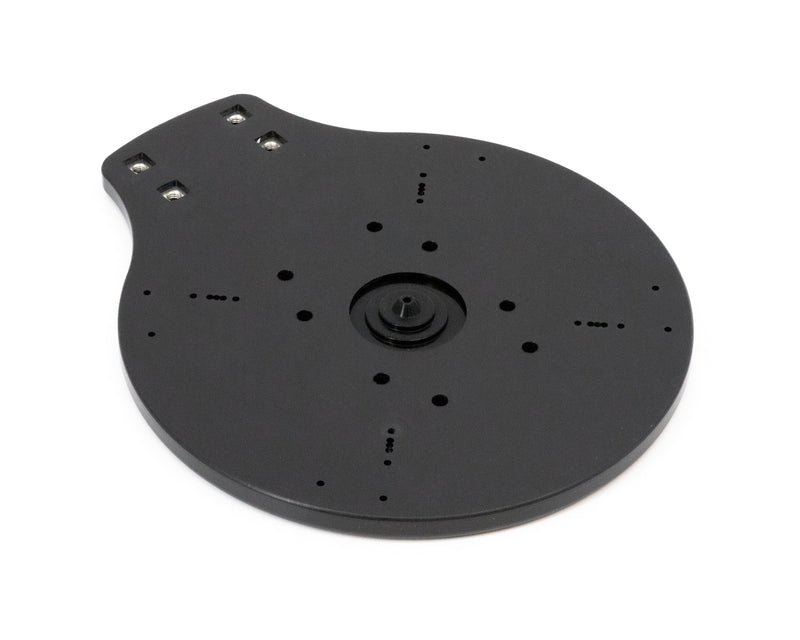

    Seaview Modular Top Plates are designed to be mounted onto Seaview Modular Mounts. These Top Plates eliminate the "swiss cheese" look of most other radar and satdome mounts. With Seaview Top Plates the result is only four visible mounting screws to secure electronics.

  • Top Plate Fitting Guide

    If you have selected a modular mount ending in "M1" (ex: PMA-57-M1)use the "For M1 Mounts" column below for the correct Top Plate. Mounts ending in "M2" (ex: PMA-DM2-M2) use "For M2 Mounts" column.

    Make & Model Part #
    (For M1 Mounts)
    Part #
    (For M2 Mounts)
    ACR
    RCL50B, RCL75, RCL100, RCL1000 ADA-BLANK ADA-BLANK
    RCL300 CALL CALL
    COMNAV
    Explorer V2/V3 ADA-F1 ADA-F1
    FLIR
    MD324, MD625, M324XP, M324L, M324S, M324CS, M625XP, M625L, M625S, M625CS,
    M612L, M617CS, M618CS, T200, T300, T400
    ADA-F1 ADA-F1
    M132, M232 Series (Hiko) ADA-F2 ADA-F2
    FURUNO
    SC30, SC703, SC1303, DRS4DL, DRS4D, DRS4DNXT ADA-R1 ADAR1DMLTB
    DRS6A-NXT ADA-R1 ADAR1DMLTB
    Open array radar 1942 ADA-R2 ADAR1DMLTB
    GARMIN
    FANTOM18, GMR18(HD), GMR18x(HD) ADA-R1 ADAR1DMLTB
    GMR24(HD), GMR24x(HD) ADA-R1 ADAR1DMLTB
    Fantom, 4'-6' open array radar ADA-R1 ADAR1DMLTB
    GLOMEX
    20"-27" satdomes ADA-S1 ADA-S3
    INTELLIAN
    i2 (FB150 in i2 matching dome) ADA-S1 ADA-S3
    i3 (FB150 in i3 matching dome) ADA-S1 ADA-S1
    i4, i4P (FB150 in i4 matching dome) ADA-S2 ADA-S2
    i5 ADA-S2 ADA-S2
    i6, i6P, S6HD, FB500 ADA-S2 ADA-S2
    FB150, FB250 ADA-S4 ADA-S4
    JRC
    15" radar domes ADA-R1 ADAR1DMLTB
    24" radar domes ADA-R2 ADAR1DMLTB
    KODEN
    18" - 25" radar domes ADA-R1 ADAR1DMLTB
    4' - 6' open array radars ADA-R1 ADAR1DMLTB
    KVH
    M1DX, M1, TV1, LTE-1 ADA-S1 ADA-S3
    M2, M3, M3DX, M3ST, V3, V3-IP, TV3 ADA-S1 ADA-S1
    M5, TV5, FB250 (18”) ADA-S2 ADA-S2
    M7, M7SK, HD7, V7, TV6, FB500(26”), F55, V3- IP(24”) ADA-S2 ADA-S2
    V7-IP CALL CALL
    FB150(10.8”), FB250(14”), Fleet One, Fleet33 ADA-S4 ADA-S4
    LOWRANCE
    3G, 3G radar domes ADA-R1 ADAR1DMLTB
    LORENZ
    12"-24" radar domes ADA-R1 ADAR1DMLTB
    4'-6' open array radars ADA-R1 ADAR1DMLTB
    RAYMARINE
    RD418D, RD418HD, RD424D, RD424HD, Quantum, Quantum 2 ADA-R1 ADAR1DMLTB
    RA1048(S)HD, RA3048(S)HD, Magnum 4’ ADA-R1 ADAR1DMLTB
    RA1072(S)HD, RA3072(S)HD, Magnum 6’ ADA-R1 ADAR1DMLTB
    33STV ADA-S1 ADA-S3
    37STV ADA-S1 ADA-S1
    45STV ADA-S2 ADA-S2
    60STV ADA-S2 ADA-S2
    T200, T300, T400 ADA-F1 ADA-F1
    SEA-TEL (COBHAM)
    ST14, FX150 (16.5") ADA-S2 ADA-S2
    C18, FX250 (24") ADA-S2 ADA-S2
    SIMRAD
    3G, 4G radar domes, HALO24 ADA-R1 ADAR1DMLTB
    DX64S ADA-R2 N/A
    TX06S ADA-R1 ADAR1DMLTB
    TX10S ADA-R1 ADAR1DMLTB
    4'-6' Halo open array radar ADA-R1 + ADA-HALO3 N/A
    4' - 6' RB series open array radar ADA-R1 ADAR1DMLTB
    SITEX
    18" (T760/T921) radar domes ADA-R1 ADAR1DMLTB
    24" (T761) radar domes ADA-R1 N/A
    25" radar domes ADA-R1 ADAR1DMLTB
    4'-6' open array radars ADA-R1 ADAR1DMLTB
    SIEWA / TECH MARINE
    12"-24" radar domes ADA-R1 N/A
    4'-6' open array radars ADA-R1 N/A
    THRANE & THRANE
    FB150, FB250, Fleet 33, 33+ ADA-S4 ADA-S4
    Sailor FB500, Fleet 55+ ADA-S1 ADA-S3
  • Seaview Part Number Dimensions
    ADA-R1 Download
    ADA-R2 Download
    ADA-S1 Download
    ADA-S2 Download
    ADA-S3 Download
    ADA-S4 Download
    ADA-F1 Download
    ADA-F2 -
    ADA-BLANK Download
