Seaview

SM-14-F

Mast Mount


  • Seaview Mast Mounts are designed to have the radar or satdome as close as possible to the mast. Ultra heavy duty mounting feet and rivets are used to secure the Mast Mount to the mast.

    Adjustable

    Designed with fore and aft adjustable rails so that you can have the radar as close as possible to the mast.

    Incredible Strength

    The solid under body construction not only greatly improves strength but also hides radar cables. On certain models.

    Accessories

    Pre-drilled under body allows for flood lights or horns to be mounted. On certain models.

    • Mast Mount Fitting Guide

      Make & Model Mast Mount Part #
       FLIR

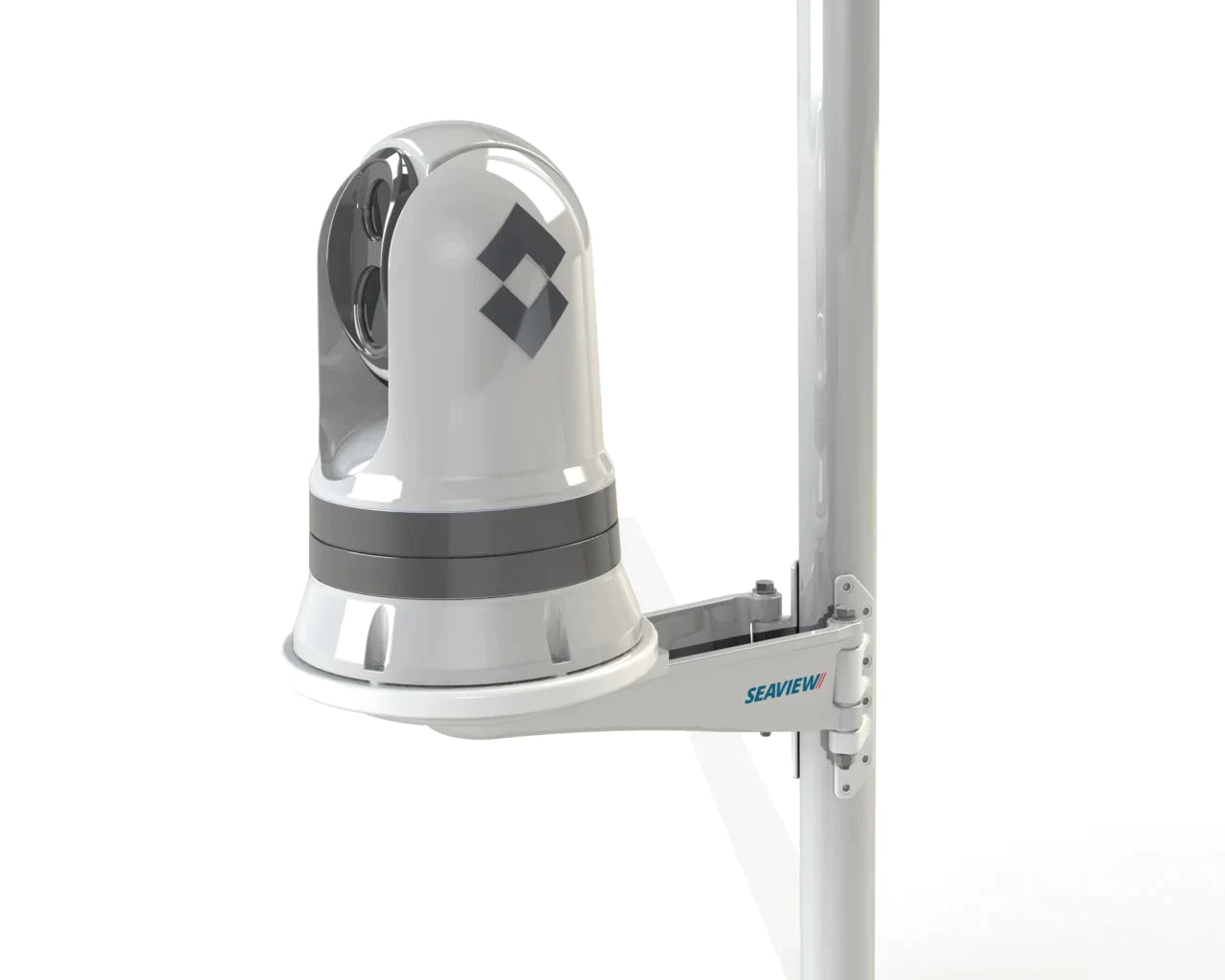

      MD-Series, M-Series SM-14-F
      FURUNO

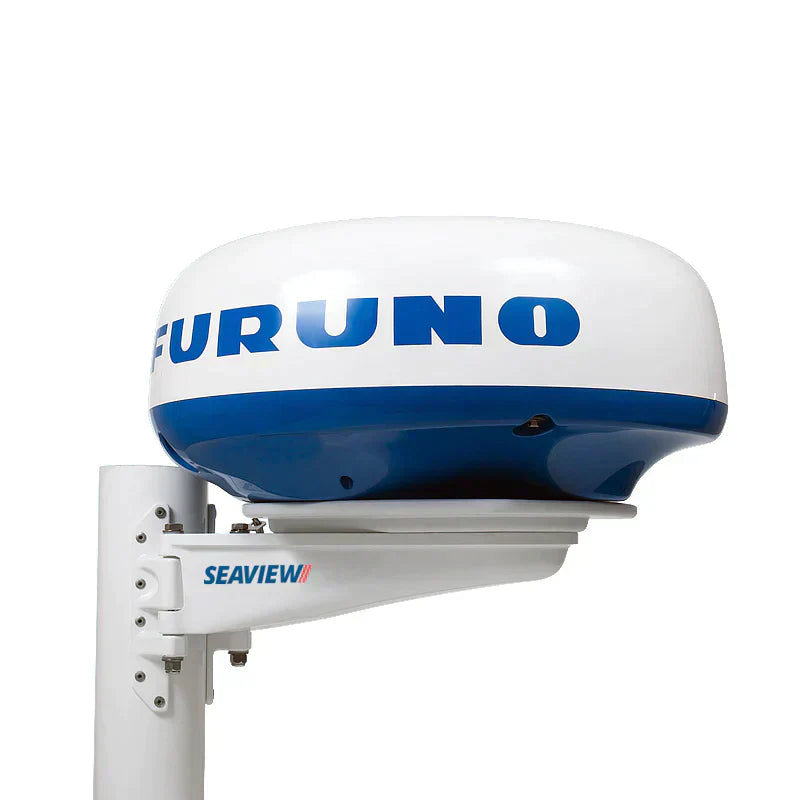

      15"-18" Radar Domes SM-18-U

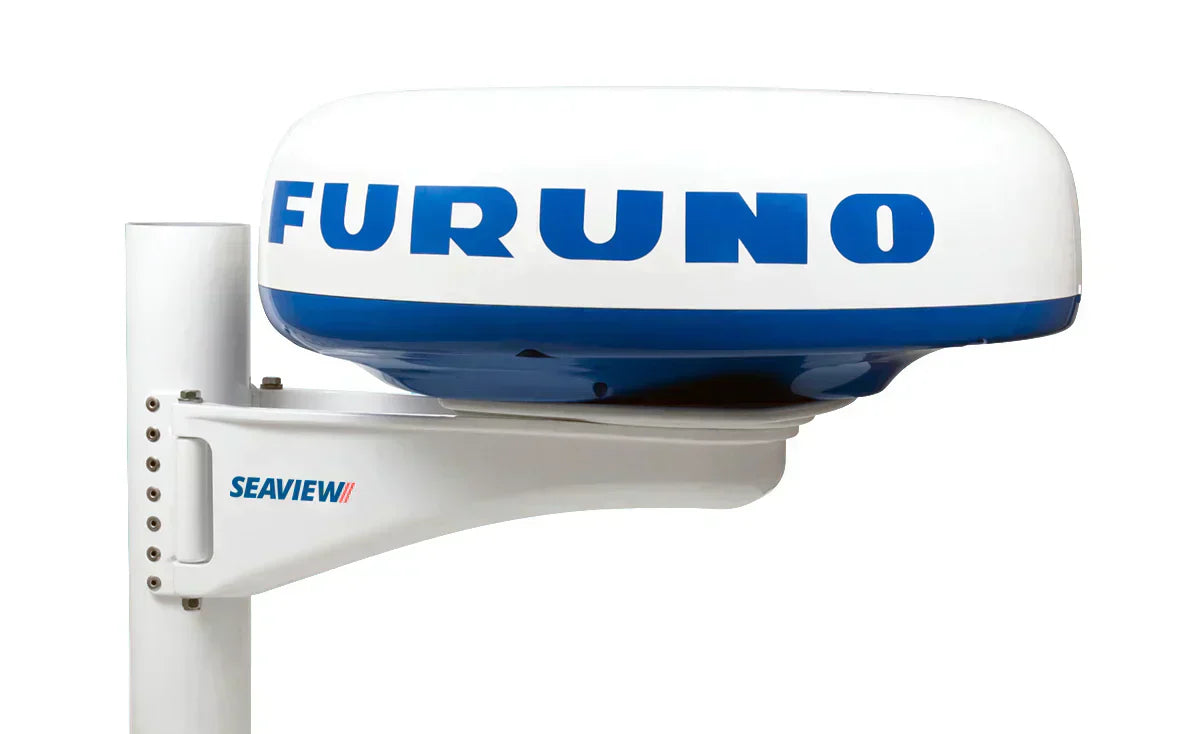

      24" Radar Domes SM-24-U
      GARMIN
      GMR18(HD), GMRx18(HD) SM-18-R
      GMR24(HD), GMRx24(HD) SM-24-R
      GEONAV
      24" Radar Domes SM-24-U
      GLOMEX
      20"-27" satdomes SM-24-A
      HUMMINBIRD
      HB2124 CHIRP Radar SM-18-R
      INTELLIAN
      i2, i3 SM-15-A
      FB150, FB250 SM-14-A

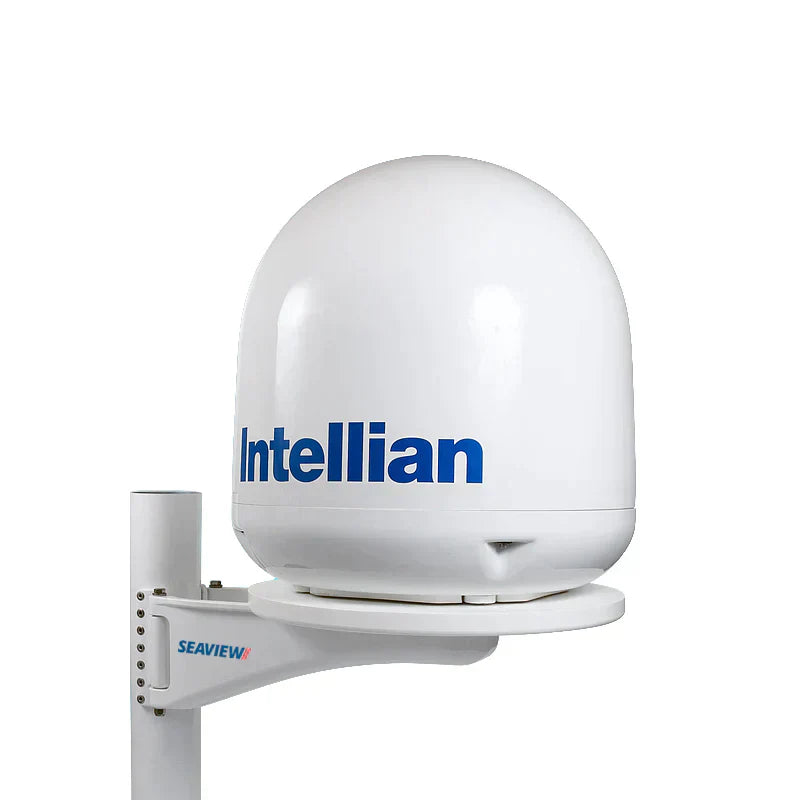

      i4, i4P SM-18-A
      i5, i6, i6P, S6HD, FB500 SM-24-A
      JRC
      JUE 250, JUE 33 (14") SM-14-A
      JUE 500 (24") SM-24-A
      JMA-5104, NKE-2042 (24") SM-24-U
      KODEN
      18" (MDC 900 Series) Radar Domes SM-18-U
      24 (MDC 900 Series) Radar Domes SM-24-U
      KVH
      Fleet33, Fleet One, FB150(10.8"), FB250(14") SM-14-A

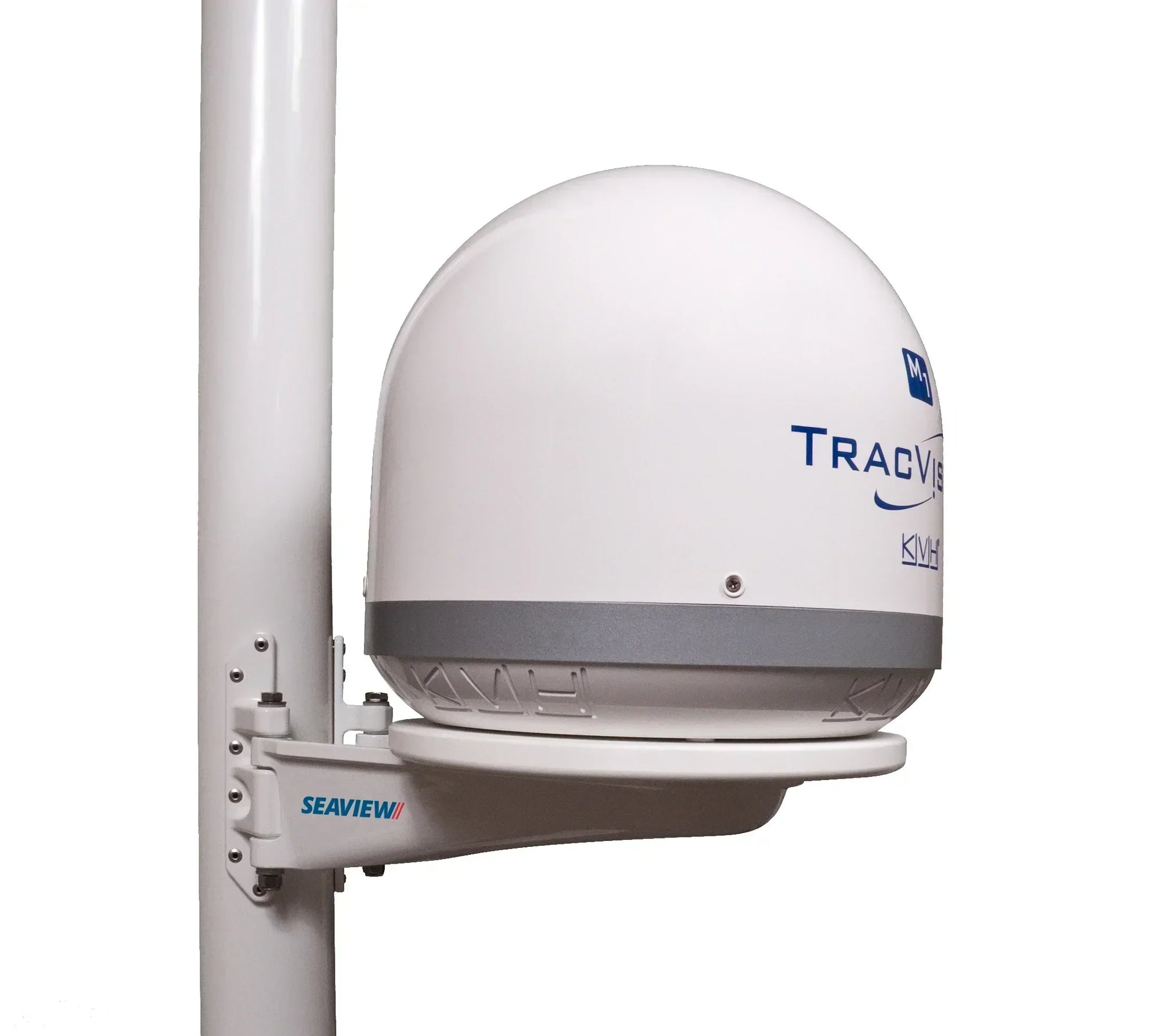

      M1DX, M1, TV1, M2, M3, M3DX, M3ST, V3, V3-IP, TV3 SM-15-A
      M5, FB250(18"), TV5 SM-18-A
      M7, M7SK, FB500(26"), V7, V7-IP, TV6, HD7, TV3-IP(24") SM-24A
      LORENZ
      12"-24" Radar Domes SM-18-U
      LOWRANCE
      3G, 4G SM-18-R
      OYSTER
      50MGS, 75MGS, 77MGS, TRX-7MGS SM-24-A
      RAYMARINE

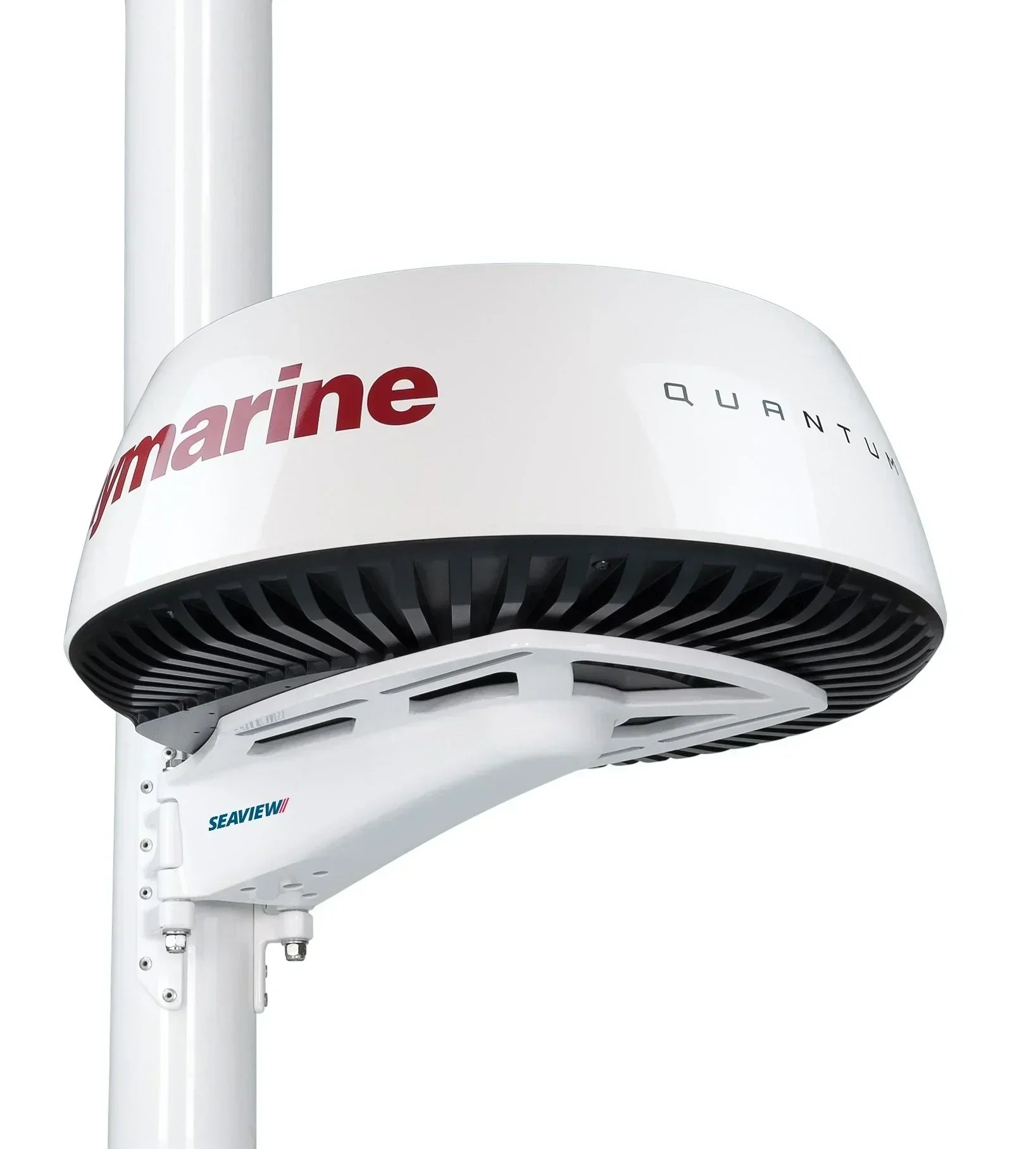

      Quantum, 18" Radar Domes SM-18-R

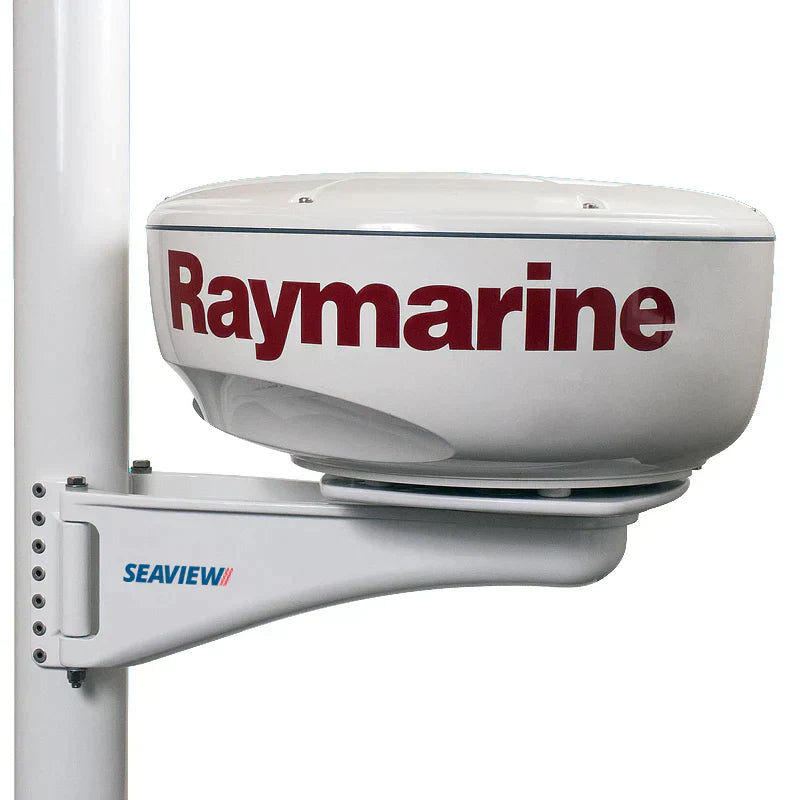

      24" Radar Domes SM-24-R
      33STV, 37STV SM-15-A
      45STV SM-18-A
      60STV SM-24-A
      T200, T300, T400 SM-14-F
      SEA TEL / COBHAM
      ST14, FX150 (16.5") SM-18-A
      C18, FX250 (24") SM-24-A
      SEIWA / TECH MARINE
      12"-24" Radar Domes SM-18-U
      SIMRAD
      3G, 4G Radar Domes SM-18-R
      DX64S SM-24-U
      SITEX
      18" (T760/T921) Radar Domes SM-18-U
      24" (T761), 25" Radar Domes SM-24-U
      THRANE & THRANE
      FB150, FB250, Fleet 33, Fleet 33+ SM-14-A
      Sailor FB500, Fleet 55+ SM-24-A
      VDO
      Ocean Line 132 SM-18-U
      Ocean Line 337 SM-18-A
      Ocean Line 345, 360, 445, 460 SM-24-A
    • Mast Mount Dimensions

        A
      inch / mm
      B
      inch / mm
      C
      inch / mm
      D
      inch / mm
      E
      inch / mm
      SM-14-A 8.23 / 209 15.9 / 403.1 4.11 / 104.4 7.44 / 189 ≤ 2.63 / 66.68
      SM-15-A 12 / 304.8 16.25 / 412.75 6 / 152.4 6.50 / 165.1 ≤ 2.63 / 66.68
      SM-18-A 18.5 / 469.9 22.75 / 577.85 6 / 152.4 6.50 / 165.1 ≤ 3.63 / 92.08
      SM-18-U 12 / 304.80 15.65 / 397.51 3.44 / 87.4 7.44 / 189 ≤ 2.63 / 66.68
      SM-18-R 11.28 / 286.5 18.01 / 457.5 3.44 / 87.4 7.44 / 189 ≤ 2.63 / 66.68
      SM-24-A 18.50 / 470 25 / 635 6 / 152.4 6.50 / 165.1 ≤ 3.63 / 92.08
      SM-24-U 11.75 / 298.45 20 / 508 6 / 152.4 6.50 / 165.1 3.63 / 92.08
      SM-24-R 11.75 / 298.45 20 / 508 6 / 152.4 6.50 / 165.1 3.63 / 92.08
    • Seaview Part Number  Installation Instructions
      SM18R Download
